Product Details
- Place of Origin: Shandong, China (Mainland)
- Brand Name: yuzhuo
- Model Number: YZ CNC

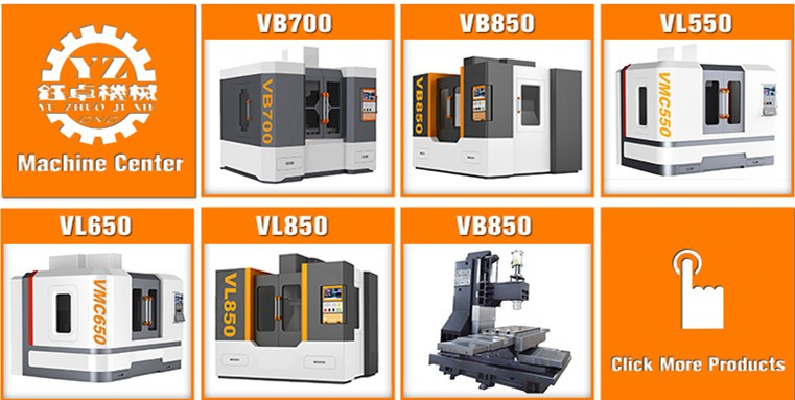

VB700---Box guideways in 3 axes | ||
Travel | X axis | 700mm |
Y axis | 450mm | |
Z axis | 500mm | |
Spindle nose to table | 150-650m | |
Spindle nose to column | 485mm | |
Feed | max X rapid feed | 20 m/min |
max Y rapid feed | 20 m/min | |
max Z rapid feed | 20 m/min | |
Cutting feed | 1-10m/min | |
Torque | X:10 N.m Y:10 N.m Z:10 N.m | |
Table | Table size | 1000×400mm |
Max load | 450Kg | |
Table surface to floor | 840mm | |
T slot | 3×18×125mm | |
Spindle | Type | Belt |
Speed | 8000 rpm | |
Spindle taper | BT40 | |
Main motor | 5.5KW | |
Accuracy | Accuracy (JIS) | ±0.005/300mm |
Repeatability (JIS) | ±0.003mm | |
Other | Weight | 3800 Kgs |
Size | 2500×2100×2400 | |
